3D Pipe Tools for AutoCAD
Description:

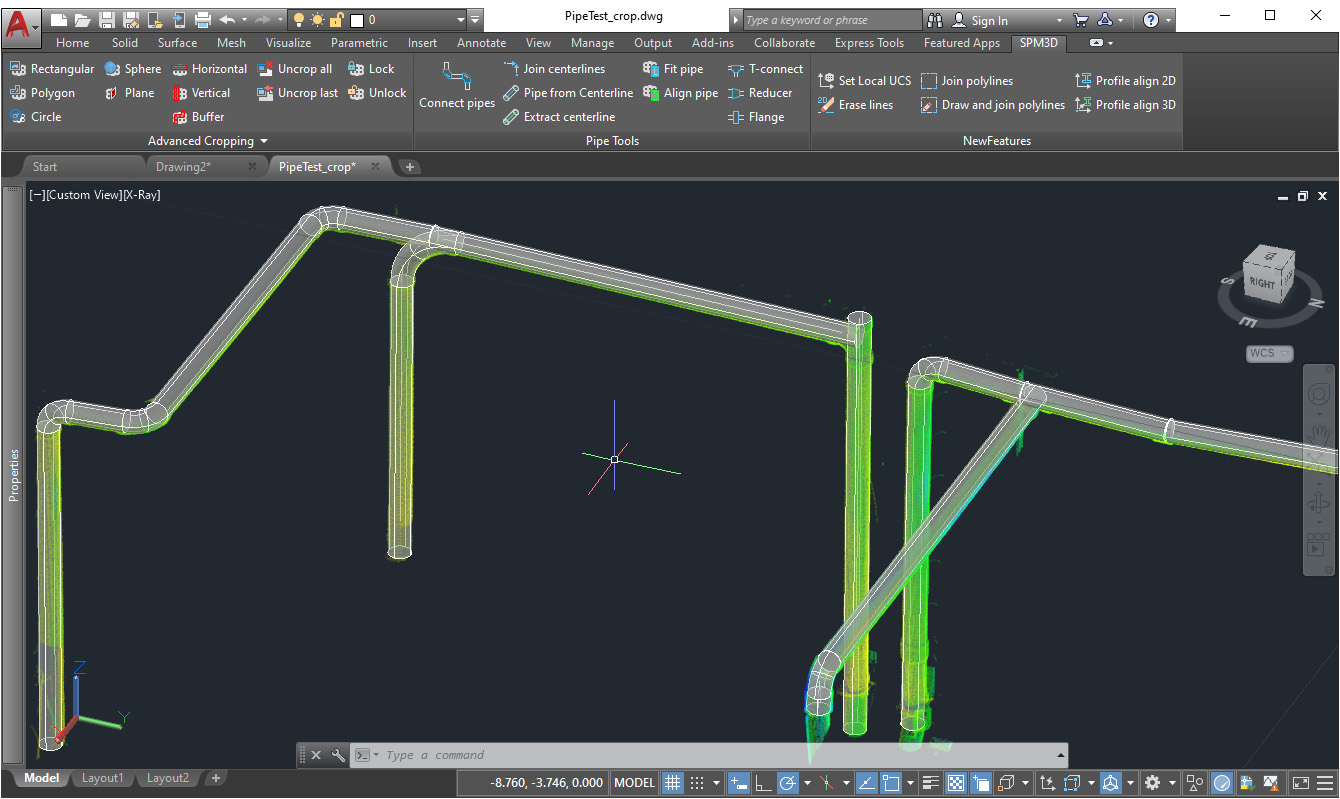

This program allows to build 3d pipes in Autocad according to the pointcloud, join them with elbows, reducers, t-joints, extract centerlines.
Main features
- Semiautomated pipe fit to structured point cloud
- Semiautomated pipe fit to unified point cloud
- Build pipe from centerline
- Automatic pipe join eith elbow
- Build t-joint, reducer, flange
- Pipe centerline extraction
Demo:
Commands
| Command name | Description |
|---|---|

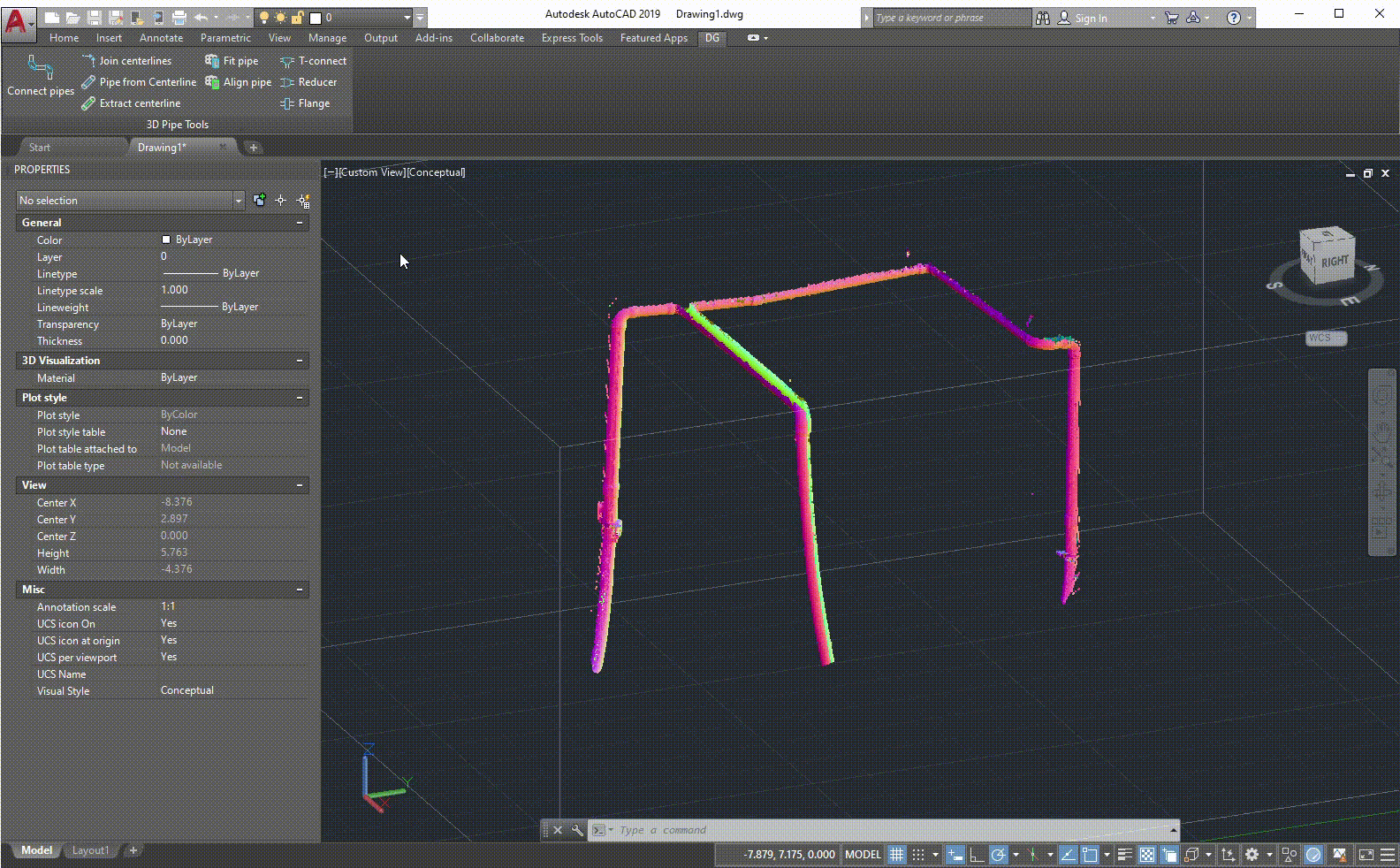

| Fit pipe | Extracts pipe centerline from structured point cloud and asks to specify pipe diameter. Makes a pipe of specified diameter as a cylinder. |
| Pipe align | Aligns view to pipe in unified point cloud and asks to specify a 3-point circle of pipe. Makes a pipe as a cylinder. |

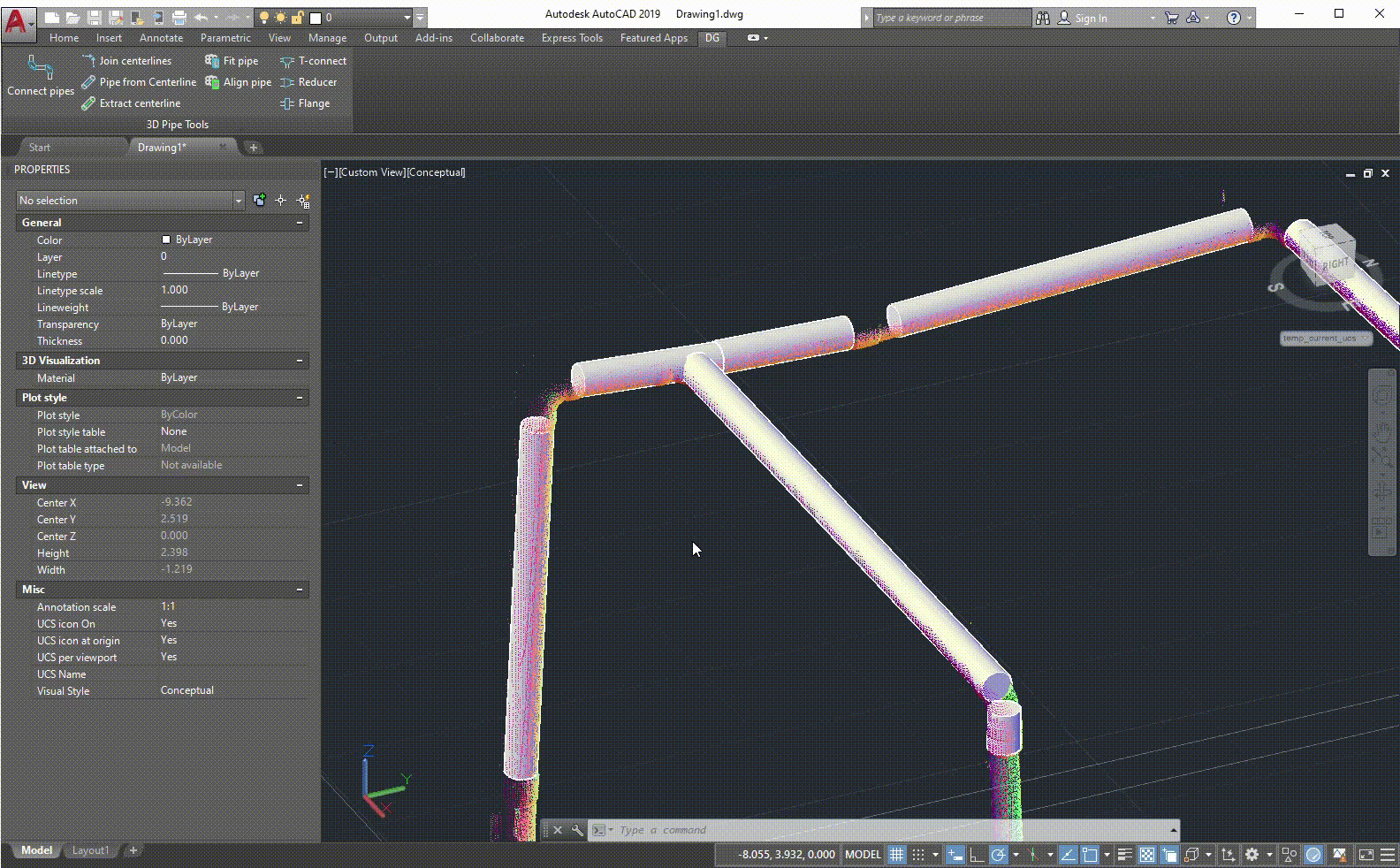

| Connect pipe | Joins several pipes with an elbow of specified raduis. |
| Join centerlines | Joins several centerlines of pipes, even if they are skew lines. |
| Extract centerline | Extracts centerline from cylinder pipe |
| Pipe from centerline | Builds a pipe of specified diameter from selected centerline. |

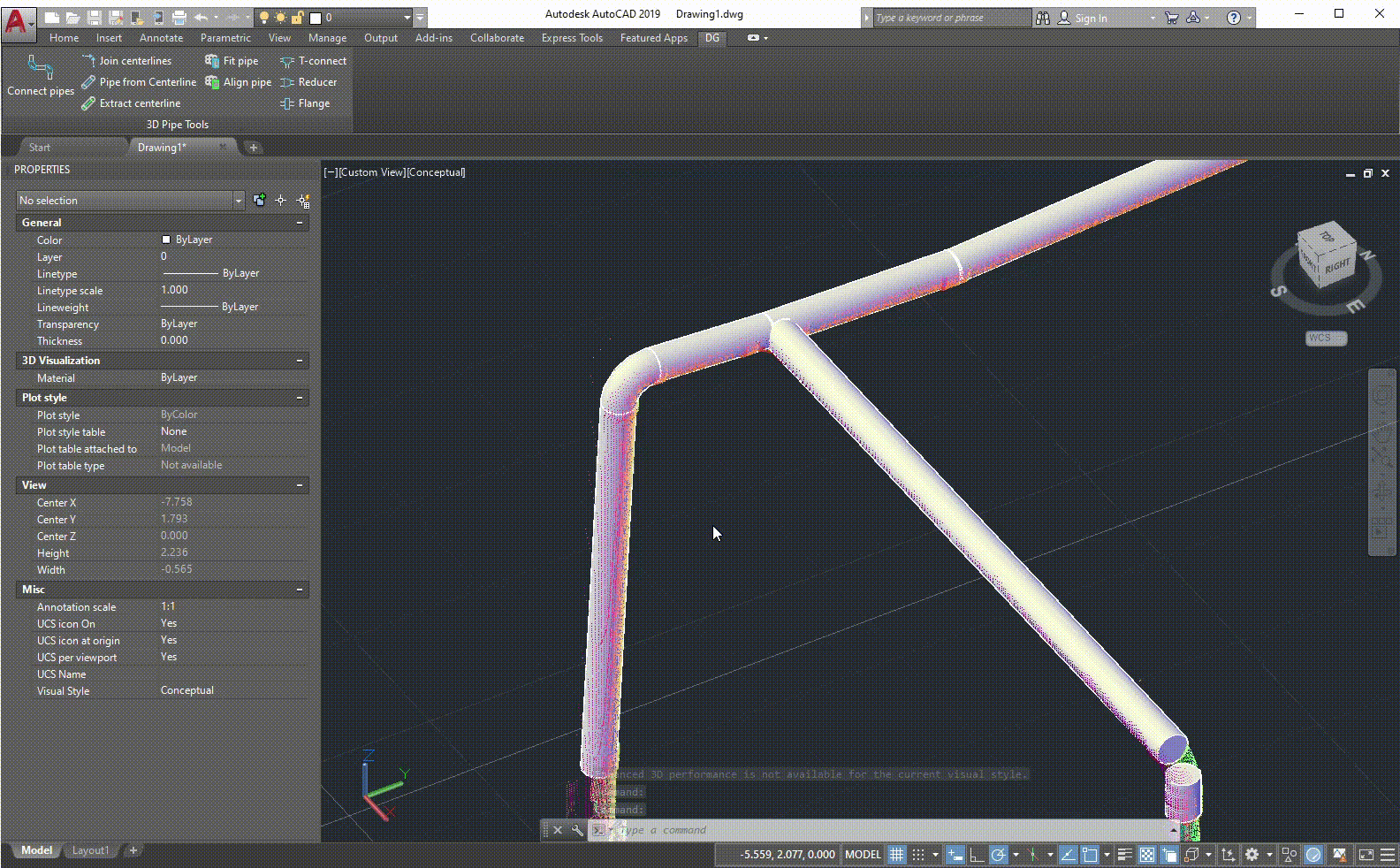

| T-connect | Select first base pipe and then select second pipe, which you want to connect to the base pipe with T-join. |
| Reducer | Builds a reducer from two pipes of different diameters. |
| Flange | Inserts a flange in the middle of the pipe as a cylinder, which can be adjusted with grips. |
Privacy policy:
This app doesn't collect any user data and doesn't share it with third parties.
Installation:
Simply run the installer and give it admin rights if it asks about it.
Trial description:
You can download the program for free and use it for 15 days in trial mode. If you like it, you can buy the license and unlock the software for unlimited use. Please, send me an e-mail with your license code to obtain an activation code.
Contact
Company Name: Denys Gorkovchuk
Company URL: http://www.gorkovchuk.com
Support Contact: d.gorkovchuk@gmail.com
Author/Company Information
Denys Gorkovchuk
Support Information
Write me d.gorkovchuk@gmail.com
Version History
| Version number | Version description |
|---|---|
| 1.0 | Initial release |
